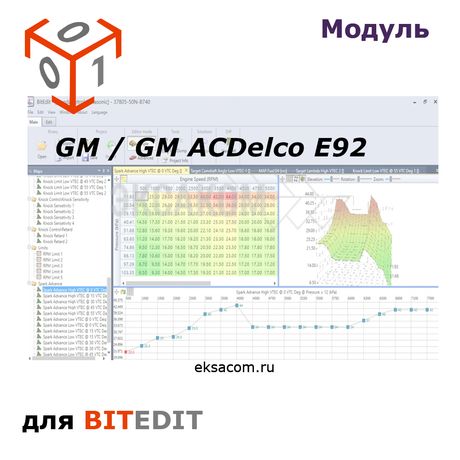

BitEdit - GM / GM ACDelco E92

Модуль GM ACDelco E92

Модуль для калибровки прошивок блоков управления ACDelco E92 атмосферных бензиновых автомобилей концерна GM (Chevrolet, Cadillac и др.)

Для редактирования доступны следующие карты:

Fan Control: Desired FAN control, Desired FAN control via coolant temperature
Fuel: AFR target value as stoichiometry, Dynamic Airflow High RPM, Dynamic Airflow High RPM, Mass air flow sensor scaling
Fuel:Injector: Injector Flow Rate, Injector Flow Rate Density Multiplier, Injector Flow Rate Fuel Pressure multiplier
Fuel:Open Loop: Injection enrichment ratio open loop (alcohol), Injection enrichment ratio open loop (gasoline)
Fuel:Power Enrich: Engine speed for enable power enrichment, Power enrichment, Pedal position for enable power enrichment, Power Enrich EQ Ratio vs. RPM, Torque threshold for enable power enrichment
Idle: Idle speed in motion, Startup idle speed in drive position, Startup idle speed in P/N, Target Idle Speed vs. Coolant Temp
Knock Control: Knock sensor threshold, Knocking fast attack rate, Maximal knock retardation, Maximal retardation step
Limiters: Vehicle speed limitation, Vehicle speed limitation minimum reverse, Vehicle speed limitation minimum
Requested torque: Requested torque normal mode, Requested torque reduced power mode
RPM Limits: Engine speed limitation, Engine speed limitation fuel cut off, Engine speed limitation extreme cut, Engine speed limitation extreme restore
Spark: Main spark advance high octane, Main spark advance low octane, Minimal final spark advance, Minimal spark advance, Minimal spark advance long, Optimal spark advance, Optimal spark advance (alcohol), Spark advance cranking, Spark advance flex fuel
Torque Control: Maximal engine torque reverse gear, Maximal engine torque limitation, Peak engine torque, Torque limitation overboost
VVT: Exhaust camshaft correction by coolant temperature, Exhaust camshaft position by coolant temperature, Intake camshaft position full load, Exhaust camshaft position full load, Exhaust camshaft position high, Exhaust camshaft position high atmospheric pressure, Exhaust camshaft position low, Exhaust camshaft position medium, Intake camshaft position by coolant temperature, Intake camshaft position correction by coolant temperature, Intake camshaft position high, Intake camshaft position high atmospheric pressure, Intake camshaft position low, Intake camshaft position medium
DTC mask editor
